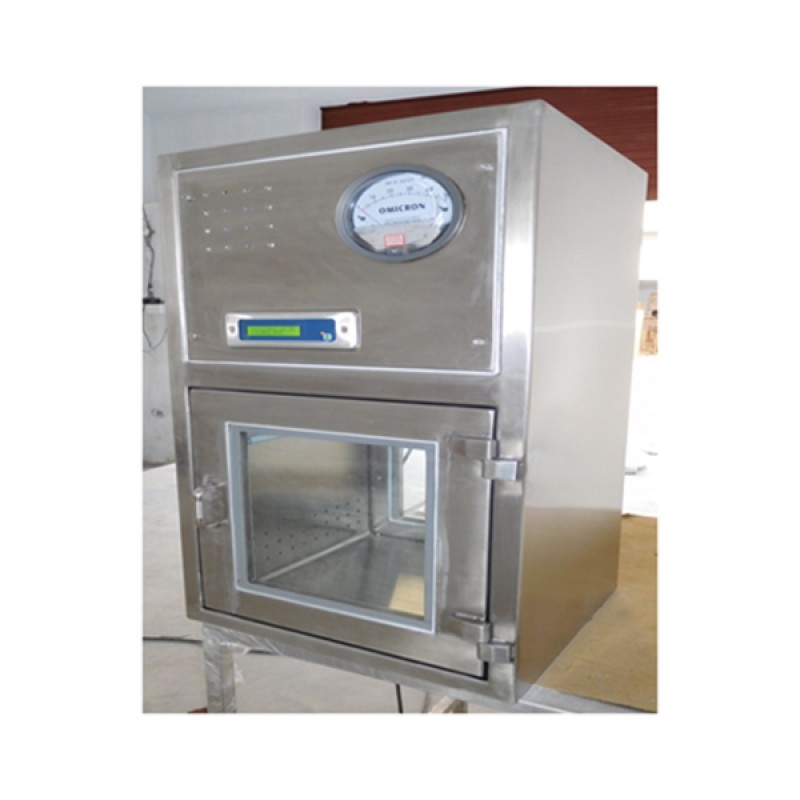

Dynamic Pass Box

Dynamic Pass Box

S K Sheet Metal Ind is top-notch manufacturer, supplier of range of Dynamic Pass box based at Ahmedabad, Gujarat, India. Our range of Dynamic pass box are proudly applicable in to wide range of industries like Vaccine plant, injectable plant, Pharmaceutical, Medical implant, Medical devices, Electronic industry, Food processing industry, Chemical research laboratories & Semi-conductor industry.

The primary function of Dynamic pass box is to pass through the material from an uncontrolled environment to controlled environment.  It is like cubicle box which got interlocking door at both end which protect the controlled environment from being polluted while transportation of material taking place. The dynamic pass box is equipped with 8 Watt Ultraviolet light with hour motor which is controlled by interlocking arrangement & it shut off when the door is open. Also, Fluorescent lamp (Capacity 20 watt) is controlled by interlocking arrangement and when the door are in closed position then this lamp get on .

Salient Features:

Our range of dynamic pass box are equipped with following state of art salient features:

  • Manufactured according to CGMP standard
  • Easy to clean
  • Doubled Layered Cabinet with Doors & Toughened Glass
  • Cabinet is manufactured either in SS 304/316 Structure as per the customer requirement
  • Re-Circulated Filtration System
  • Innovative Electro Magnetic interlocking System
  • HEPA filter H14 filter for supply air and exhaust air
  • EU-6 Grade Pre-Filter With SS 304 Flange
  • Air velocity: 0.45±0.06  mps (90±20FPM) Below Six Inch of Grill
  • Equipped with Magnehelic Differential pressure gauge
  • Variable speed Centrifugal type Air blower
  • inbuilt White & UV Germicidal Light
  • Controller for Blower/Light/Pressure Display
  • Dispersed Oil Particulate Port/Atmospheric Nozzles
  • Noise Level Minimum 70db On Scale
  • Power Supply:  1 phase- 230V- 50 Hz


Optional Features:

  • Measuring system for pressure differential and volume flow or air velocity
  • Digital Pressure Gauge instead of Analogue Gauge with Alarm Hour Meter
  • Design Qualification, Installation qualification and operational Qualification available on request.


In our Ahmedabad based Plant, we can manufacture & Customized the Dynamic Pass box as per the customer Size. For more information, kindly get in touch with us .
